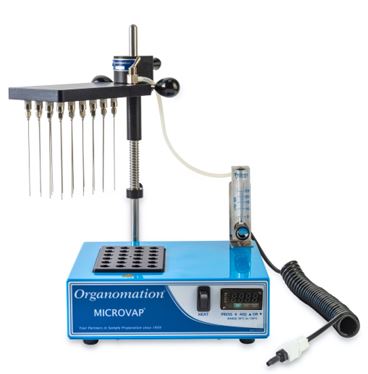

The 24 position MICROVAP small vial evaporator is intended for concentrating small volume, small batch samples, such as concentrations of groups of samples in microcentrifuge tubes and GC vials. It offers an effective and compact solution to evaporation of samples for life sciences and pharmaceutical laboratories.

Each MICROVAP uses minimal hood space while providing optimal temperature control for high and low boiling point solvents. The 24 position MICROVAP comes standard with stainless steel luer lock hubs and 4-inch x 19-gauge stainless steel needles for easy removal.

Up to 24 samples can be accommodated at once, and the instrument comes customized for one sample size with an outside diameter of 10-17 mm. If multiple sample sizes will be used with the instrument, additional sample blocks can be purchased for each additional sample size.

Each of the sample blocks are customized to your samples for a precise fit and optimum heat transfer. Since these heat blocks are made-to-order, we will request that you deliver us three sample vials for each unique vial size upon placing an order for a 24 Position MICROVAP. In situations where shipping sample vials to Organomation is not possible, we need precise measurements of your sample vials to be taken as illustrated in this guide.

The digital temperature controls and solid aluminum heating unit provide uniform heat from room temperature up to 130°C with temperature accuracy of +/- 2°C. The newly redesigned heating unit allows excellent heat stability for low temperature applications. An unheated version is available for evaporations that will be performed at ambient temperatures.

STANDARD FEATURES

• Adjustable flow meter

• Digital temperature control

• High temperature limit switch

• 4-inch x 19 gauge needles

• Nitrogen filter

• Anodized aluminum dry block

OPTIONS (Add to main Cat# when purchasing)

• 230V wiring harness (Option Code -2), Cat# 11824-2

• Z-Purge/positive pressure purge case (Option Code -Z), Cat# 11824-Z

• Manifold and stand only: no heating platform (Option Code -O), Cat# 11824-O

• Acid resistant coating on instrument and needles (Option Code -RT), Cat# 11824-RT
